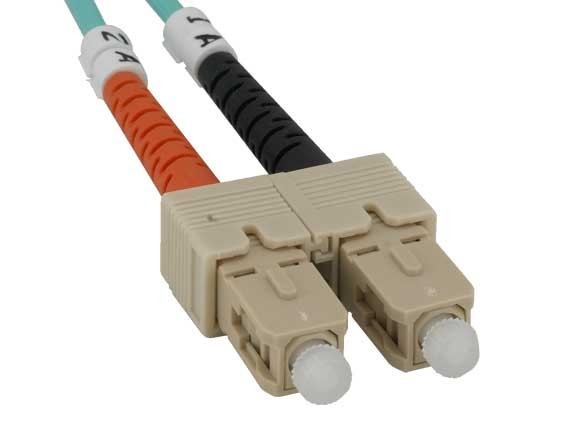

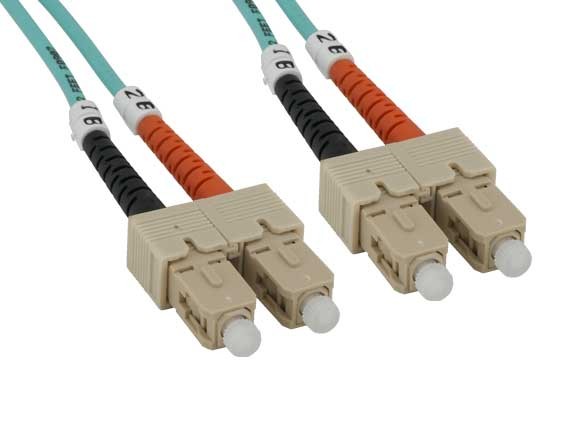

2.0mm OM3 SC to SC Multi-Mode Fiber Optic Cable

  • $10.30
    Unit price per
Shipping calculated at checkout.

Our high quality OM3 multi-mode fiber cable with SC/SC connectors is perfect for high-throughput applications.

Support 10Gb up to 300 meters, 40Gb and 100Gb up to 100 meters. With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm.

Full Details

  • Fiber Connector :            SC to SC
  • Fiber Mode:                      OM3, Multi-mode, 50/125
  • Fiber Count:                      2 Strands
  • Polish Type:                       UPC to UPC
  • Insertion Loss:                   < 0.3 dB
  • Return Loss:                       > 35 dB
  • Jacket OD:                           2.0 mm
  • Jacket Material:                 PVC
  • Jacket Color:                      Aqua



  • Use with LED and VCSEL laser light sources
  • SC connector has a simple push-pull motion for quick installation and removal
  • Backward compatible with LED-based 50/125 multimode fiber applications
  • OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building
