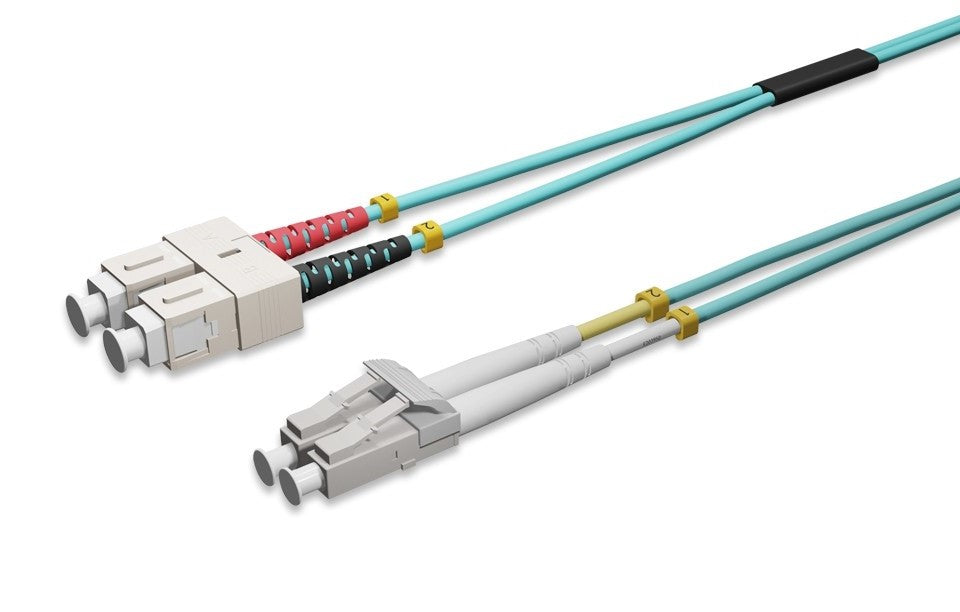

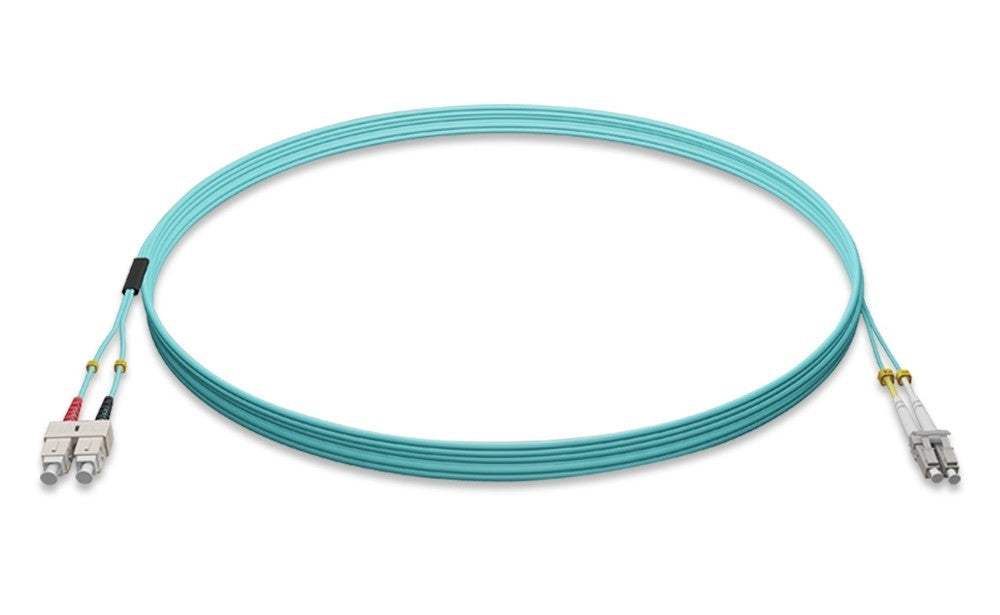

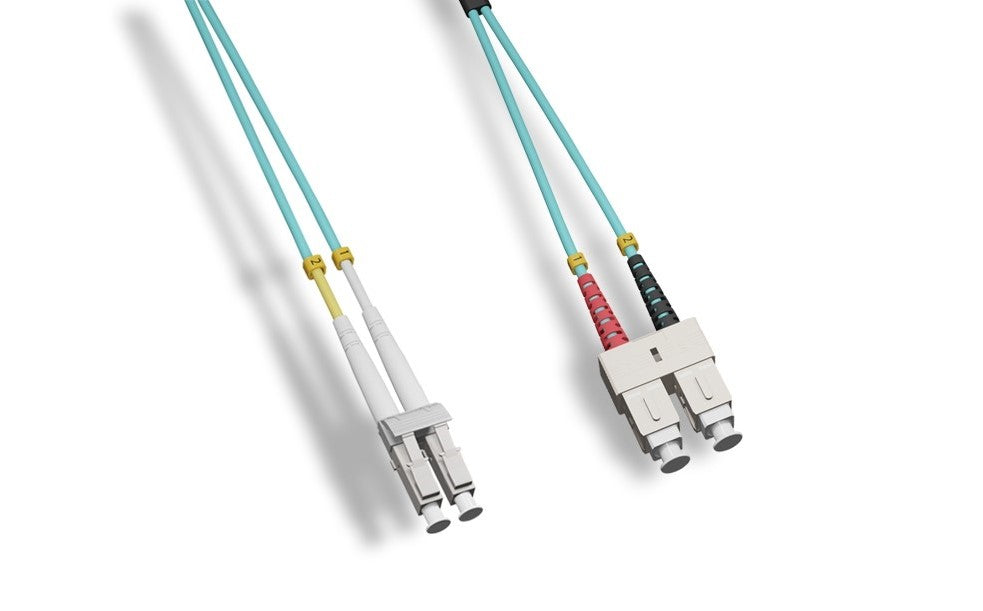

OM4 Standard LC/SC 10G Duplex Multi-Mode Fiber Cable

  • $7.69
    Unit price per
Shipping calculated at checkout.

OM4 Standard LC/SC 10G Duplex Multi-Mode Fiber Cable

Our high-quality OM4 multi-mode fiber cable with LC/SC connectors is perfect for high-throughput applications.
OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
Support 10Gb up to 550 meters, 40Gb and 100Gb up to 150 meters.

Full Details

  • Fiber Connector :             LC to SC
  • Fiber Mode:                     OM4, Multi-mode, 50/125
  • Fiber Count:                     2 Strands
  • Polish Type:                      UPC to UPC
  • Insertion Loss:                  < 0.3 dB
  • Return Loss:                      > 35 dB
  • Jacket OD:                        2.0 mm
  • Jacket Material:                 OFNR (Riser)
  • Jacket Color:                     Aqua
  • Operating Temp:               -20˚C to +70˚C


Features Electronics

  • UL listed
  • Test report included in each cable package
  • Use with LED and VCSEL laser light sources
  • Corning® glass 50μm core and 125μm cladding
  • The small LC connector is perfect for high density network applications
  • The SC connector with additional latches to secure the installation/removal with similar features to LC connectors
  • Backward compatible with LED-based 50/125 multimode fiber applications
  • OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building
