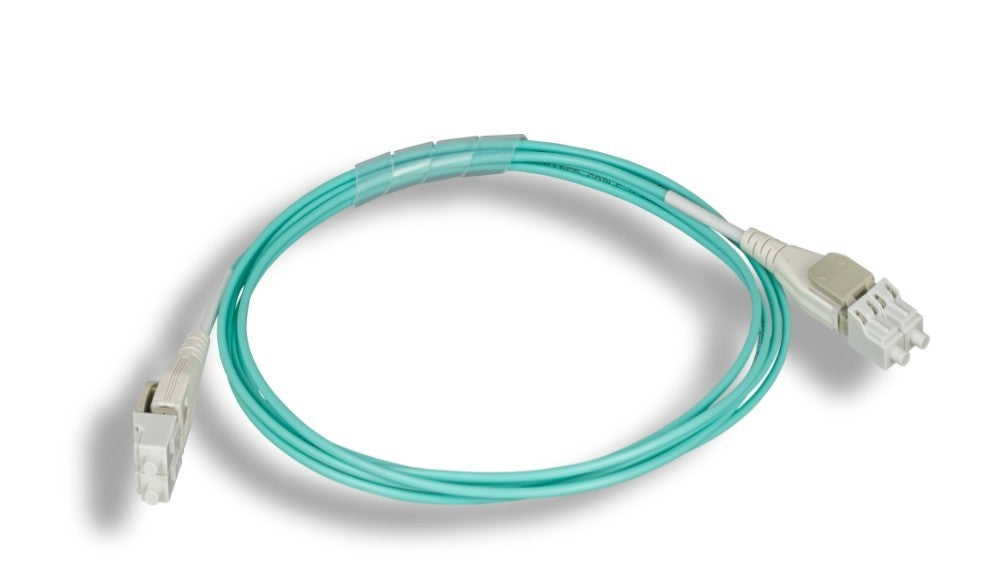

Uniboot OM3 LC to LC Multi-Mode Fiber Optic Cable

  • $22.50
    Unit price per
Shipping calculated at checkout.

Our high quality OM3 multi-mode fiber cable with LC/LC connectors is perfect for high-throughput applications.

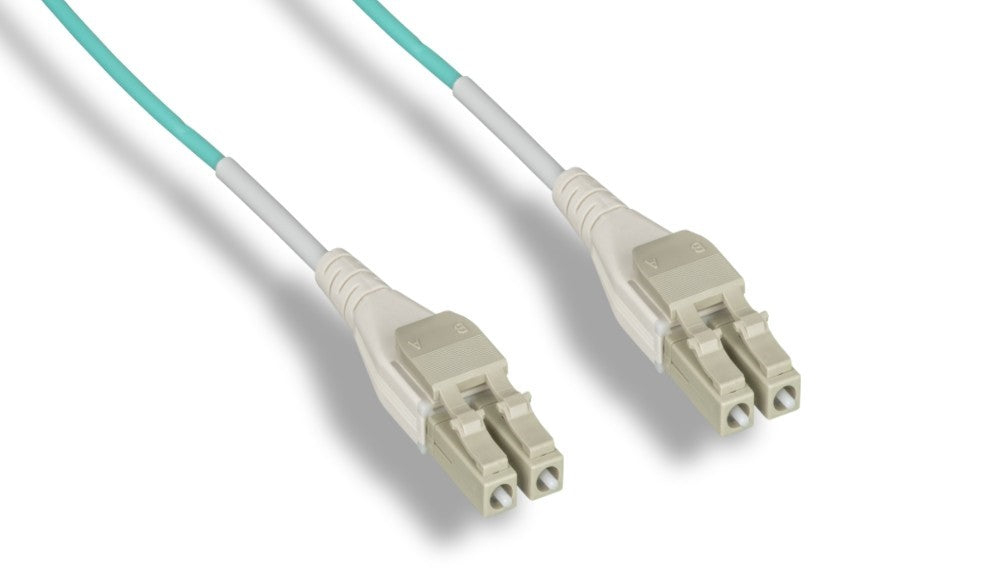

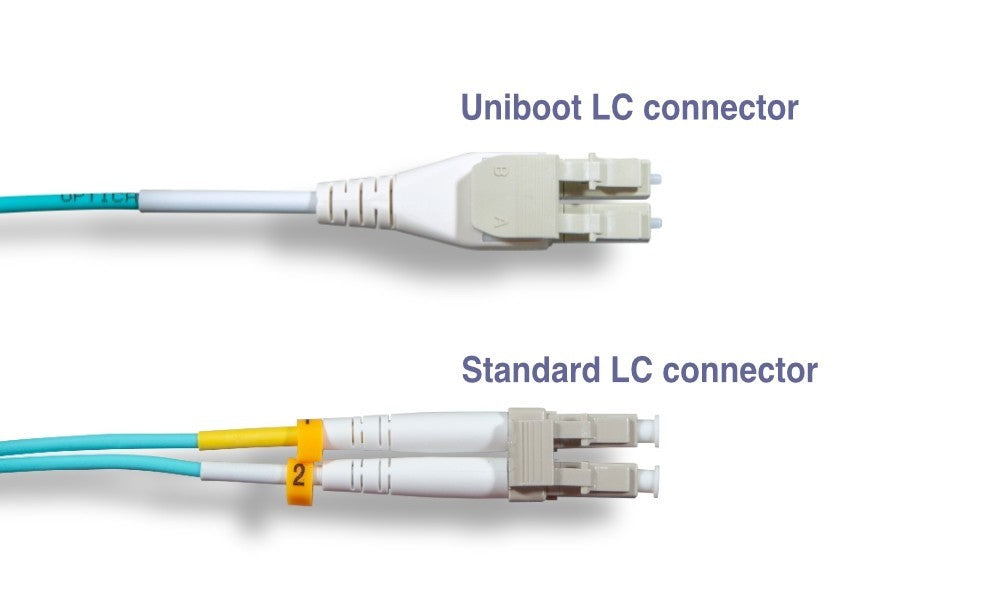

Uniboot designs enables two fibers to be carried by one jacket to improve airflow and cable management in tight spaces. This Uniboot OM3 fiber cable allows you to simply reverse polarity without any tools.

Support 10Gb up to 300 meters, 40Gb and 100Gb up to 100 meters. With an Effective Modal Bandwidth (EMB) of 2000 MHz/km at 850nm.

Full Details

  • Fiber Connector :            LC to LC Uniboot
  • Fiber Mode:                      OM3, Multi-mode, 50/125
  • Fiber Count:                      2 Strands
  • Polish Type:                       UPC to UPC
  • Insertion Loss:                   < 0.3 dB
  • Return Loss:                       > 35 dB
  • Jacket OD:                           2.0 mm
  • Jacket Material:                 PVC
  • Jacket Color:                      Aqua



  • Use with LED and VCSEL laser light sources
  • The small LC connector is perfect for high density network applications
  • Backward compatible with LED-based 50/125 multimode fiber applications
  • OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building
