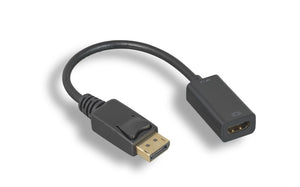

DisplayPort to HDMI (4Kx2K@30HZ) Female Passive Adapter

DisplayPort to HDMI (4Kx2K@30HZ) Female Passive Adapter

• Support DisplayPort 1.2 & HDMI 1.4 specification
• Support HDMI resolutions up to 4K x 2K@30Hz
• Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a HD monitor, TV or projector with HDMI input. (An HDMI cable is required)
• Gold-plated connector provides superior transmission, high reliability and durability
• Deliver high definition audio and video signals from your computer to a monitor for video streaming or gaming
• DisplayPort connector with latches keeps cable securely plugged in
• All relevant materials are complied with RoHS directive

Full Details

• Connector A :                  DisplayPort Male with Latch
• Connector B :                  HDMI Female
• Color :                                Black Color
• RoHS Compliant :           Yes

Features

• Support DisplayPort 1.2a input and HDMI 1.4b output
• Support HDMI resolutions up to 4K x 2K@30Hz
• Support multiple color format: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc
• HDMI1.4b compliant with maximum data rate 3.0Gbps
• Support up to 8 channel LPCM, compressed audio (AC-3, DTS) and HBR audio format
• Support up to 192 kHz audio frame rate and up to 24-bit audio sample size
• Integrated both HDCP Rx and Tx keys to support HDCP repeater
• Powered from DisplayPort source

Note

• This adapter can only convert signal from DisplayPort to HDMI. This is not a bi-directional adapter.
